ACOM Director Plus 0.6.0 (beta)

18th September 2018
M0YOM
ACOM Director, Amateur Radio, Projects
15 Comments

ACOM Director Plus 0.6.0 (beta) is now available

ACOM Director Plus 0.6.0 (beta)

This release contains quite a few improvements and will be the last release for a couple of weeks while I work on adding ACOM2000A support. As I have limited access to an ACOM2000A now i’m expecting this to take around 2 weeks to complete.

Changes in this version are:

  • IMPROVED: Carrier Frequency, Gain and SWR readouts altered to improve display time of these values
  • IMPROVED: PA Temperature is now rounded to nearest degree C
  • IMPROVED: VCC5 is now rounded to nearest 0.1V
  • IMRPOVED: Relay Voltage is now rounded to nearest volt
  • IMRPOVED: PA DC Current is now rounded to 0.1A
  • IMRPOVED: PA DC Power and PA Dissipated Power are now rounded to nearest Watt
  • IMPROVED: Bias Voltages are now rounded to nearest 0.01V
  • IMPROVED: Gain now rounded to nearest 0.1dB
  • IMPROVED: Logger integration code refactored to allow easier integration with more loggers
  • IMPROVED: Forward and Reflected power meters now hold their value better improving readability
  • ADDED: Additional compact control panel design, smaller display with just the essentials
  • ADDED: N1MM+ Interface for frequency tracking
  • ADDED: Logger Tracking is now functional (please note that certain firmware versions of the ACOM600S are known not to work, the latest version does however)
  • ADDED: Proper detection for when the amplifier is shutting down

ACOM Director Plus 0.5.2 (beta) – Update for ACOM1200S

15th September 2018
M0YOM
ACOM Director, Amateur Radio, Projects
Add comment

ACOM Director Plus 0.5.2 (beta) is now available

ACOM Director Plus 0.5.2 (beta)

This is a minor update containinng a couple of bug fixes, however if you use an ACOM1200S you will need to update to this version as it corrects the amplifier detection to enable proper operation on the ACOM 1200S

  • FIXED: Changing logger integration settings didn’t take effect until ACOM Director Plus was restarted
  • FIXED: Amplifier model detection was not operating properly when using an ACOM1200S

ACOM Director Plus – Beta 1 (0.5.1)

14th September 2018
M0YOM
ACOM Director, Amateur Radio, Projects
Add comment

ACOM Director Plus (0.5.1) beta release 1 is now available below

ACOM Director Plus 0.5.1 (beta)

Changes in this release are as follows:

  • Added proper installation routine
  • Added fault display for ACOM600S and ACOM1200S
  • Fixed bug where a crash occured when connecting using a COM port that no longer exists
  • Slight layout and visual changes in the user interface
  • Significantly improved support for windows display scaling (not perfect but much improved)
  • Keep on top option is now functional
  • Some code internal cleanup





Installing Feedlines

13th September 2018
M0YOM
Amateur Radio, Station Maintenance
Add comment

After having been off air for a number of years due to an impending house move, I finally moved to my new location last summer. The house is very much a project house so most of last year was spent working on the property. This year however I decided it was time to begin getting my station built and getting back on air.

The new property has an excellent section of land which is ideal for antennas however given that the shack is in an upstairs bedroom getting coax and control lines to it would be a challenge, especially as i’d have to get these through the garden without upsetting the XYL too much.

I decided the best approach was to bury the cabling under the garden. I chose to use Messi & Paoloni BROAD-PRO 50 Double Jacket coax, it provides excellent performance at a fairly reasonable price and with the double jacket can be direct buried if needed.

Despite having the option to direct bury the coax, I decided to use conduit, this would allow me to run some additional cabling and in the event any of the cabling needed replacing, I could do so without having to dig another trench. I used 40mm waste pipe as the conduit, it’s pretty cheap and works nicely for this application, the conduit was laid on a bed of sand to help protect it from any stones or rocks. It was only buried about 8-10 inches from the surface.

Feeding the coax through the conduit was a challenge as I had a few bends, I first ran a string line through using a shop vac to suck the line from the other end (this was surprisingly effective), however feeding the cable through 20 meters of conduit was quite a struggle.

I ended up with 2 runs of coax and 2 runs of externally rated CAT6 cable (all antenna switching control, tuning control etc. will be done over ethernet). I installed an intermediate junction box before the cabling entered the conduit, this will allow me to add additional switching and/or replace any damaged coax without the need to remove the runs that go all the way to the shack.

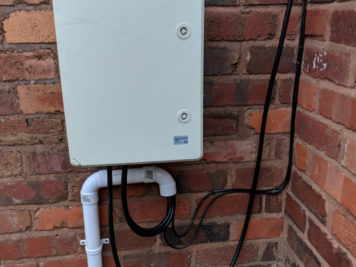

The cabling exits close to where the antennas will be located and will eventially be terminated in a large IP65 wall cabinet which will house all the antenna switching gear and matching systems, however for now I have them hooked directly into a DX Commander multi band vertical that my good friend Callum M0MCX kindly donated (http://www.m0mcx.co.uk).

I’m very happy with how it all turned out and the trench is now barely visible in the garden.



ACOM Director Plus – Alpha 1

12th September 2018
M0YOM
ACOM Director, Amateur Radio, Projects
Add comment

ACOM Director Plus Alpha release 1 is now available to download

ACOM Director Plus – Alpha 1

Changes in this version are as follows:

  • Tray Icon menu now implemented as per the original ACOM Director
  • Storable configuration options implemented
  • Auto connect on startup added
  • DXLog and Logger32 interfaces implemented (Does not yet track frequency through these)
  • ACOM1200S now supported properly, the interface changes scales depending on whether an ACOM600S or ACOM1200S is connected
  • Improvements in connection and communication reliability
  • Implemented Multi-Protocol support in preparation for ACOM2000A support being added in a future release
  • Added system tray notifications
  • About dialog implemented
  • Various bug fixes
  • UI now changes to a disabled state if not connected
  • Slight changes in UI graphics

The following are known issues:

  • Display has issues when using windows 7 with display scaling enabled and set to anything other than 100%

ACOM Director Plus can be installed side by side with the original ACOM Director software.

I would be particularly interested in hearing from anyone with an ACOM1200S as i’m unable to test with this amplifier.

ACOM Director Plus – Technical Preview 3

9th September 2018
M0YOM
ACOM Director, Amateur Radio, Projects
Add comment

Technical Preview 3 is now available and can be downloaded below

ACOM Director Plus – Technical Preview 3

This release will be the final Technical Preview release as i’m now working on the initial alpha version.

The changes in this version are as follows:

  • Improved Forward and Reflected Power Meters, they’re now more in keeping with the one on the ACOM display with improved peak value hold and decay
  • Slight change in UI colours and visual appearance to closer match the real amplifier
  • Some of the statistics have been renamed to be more appropriate
  • Improved Stability during connect and disconnect from the amplifier
  • Many background changes in preparation for Alpha 1 release

I would be very interested in receiving any feedback regarding ACOM Director Plus.

ACOM Director Plus – Technical Preview 2

6th September 2018
M0YOM
ACOM Director, Amateur Radio, Projects
Add comment

ACOM Director Plus Technical Preview 2 is now available for download.

Please see https://www.m0yom.co.uk/acom-director-plus-technical-preview-1/ for details on the Technical Previews i’m currently releasing.

This version adds a whole new user interface which whilst it’s far from the final one is very indicative over how it will look. It is also fully functional in terms of monitoring the state of the amplifier and providing Operate/Standby control as well as band change control.

As with Technical Preview 1, this has no installation routine, you simply run the self extracting download and launch the “ACOM Director Plus.exe” file.

ACOM Director Plus can be installed side by side with the original ACOM Director software.

You can download it here

ACOM Director Plus – Technical Preview 2

ACOM Director Plus – Technical Preview 1

4th September 2018
M0YOM
ACOM Director, Amateur Radio, Projects
Add comment

An update on ACOM Director? surely not. As many of you will have noticed, i’ve been somewhat silent for a while on the new version of ACOM Director, this has been down to a number of reasons, some personal, some work related and some due to some technical challenges getting it to do what I wanted it to.

Personal and Work issues aside, ACOM Director has been through 2 entire re-writes since the last update I posted, I won’t go into all the underlying reasons, however i’m now happy with the approach i’ve taken which will allow some exciting capabilities in the future. ACOM Director has now been re-written from the ground up and as such i’ve decided to create a whole new version which i’m calling ACOM Director Plus.

Read More

Read More
